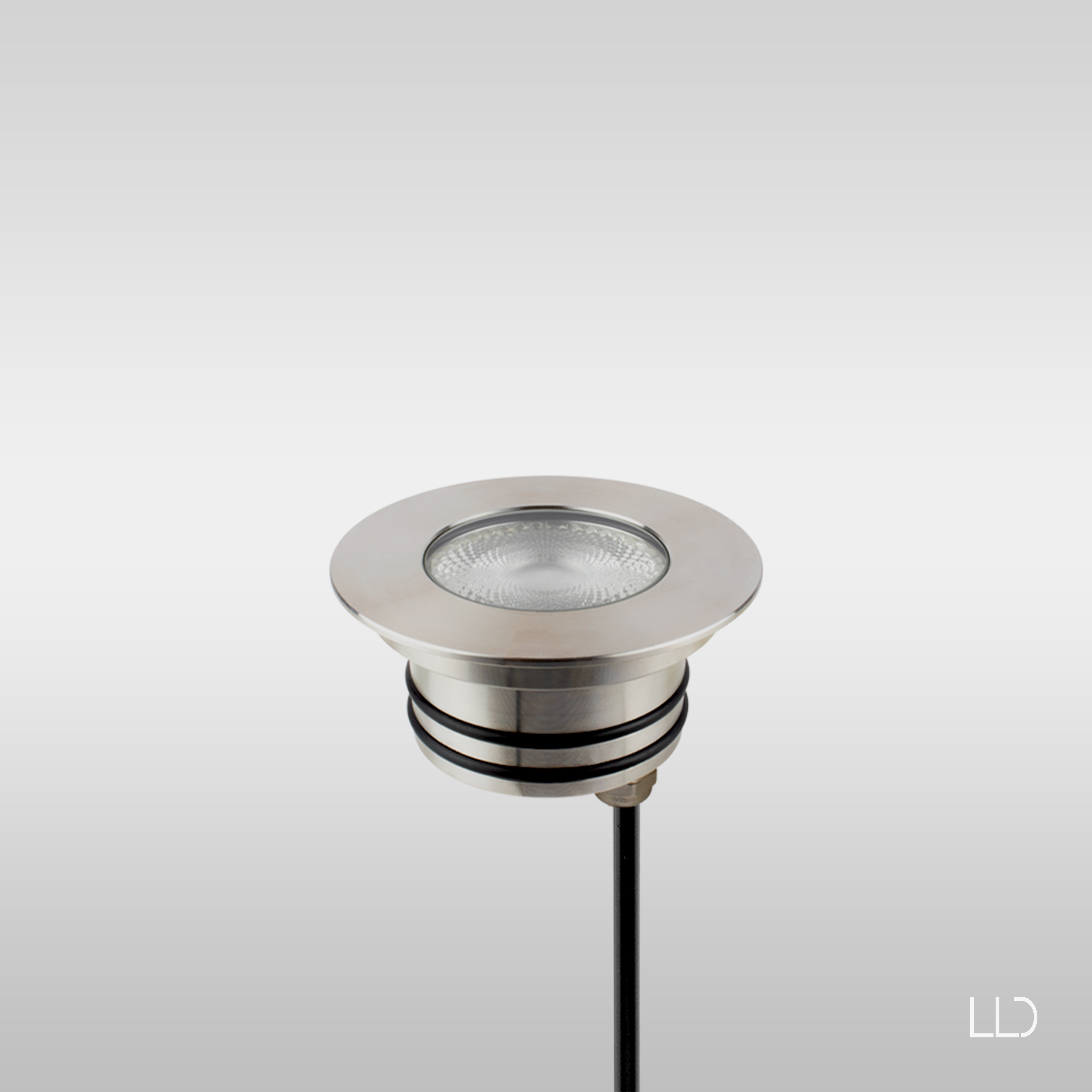

RIVER L | LLD Light

RIVER L

Recessed

RIVER L

9,5W

IP68IK08

drive

Compose the code

Supply	Led Color	Optics	Optics 2	Cable	Finishing	Dimmer	Cri	Filter
24Vdc	2200 K2700 K3000 K4000 KRedGreenBlu	18° 24° 36° diffused asym 60° 20x50°		WP 3mWP 10mWP 15m	Steel		>80	BC,BD BC - 18°, 24°, 36°, 60° only \| BD - Diffused only

Technical features
Installation
Supply
Accessories
Download

Kg 1,12

Material:

AISI 316L Stainless steel body
AISI 316L stainless steel trim
Transparent tempered glass and PMMA lens

Connection:

24Vdc – Parallel

Installation:

Recessed on ground with housing box (not included)
Recessed on brickwork with housing box (not included)
Recessed on swimming pool with liner with housing box, flange and compensation trim (not included)
Installation out of water with standard housing box
Permanent immersion installation with IP68 housing box or liner kit

Controller

Phase cut dimmer

NOTE: For power supply options, please visit the Power Supplies section of this site.

Accessories needed for installation:

CAE60 - Housing box
CA860 - Housing box
KT860 - Pools with linen KIT
BC - The Black & Clear filter, an anti-glare screen half black screen-printed and half transparent, must be ordered contextually to the lighting fixture
BD - The Black & Diffused filter, an anti-glare and semi-diffusing screen half black and half screen-printed diffusing, must be ordered contextually to the lighting fixture

NOTE:

Documents available for download:

INSTRUCTIONS DATA SHEET
