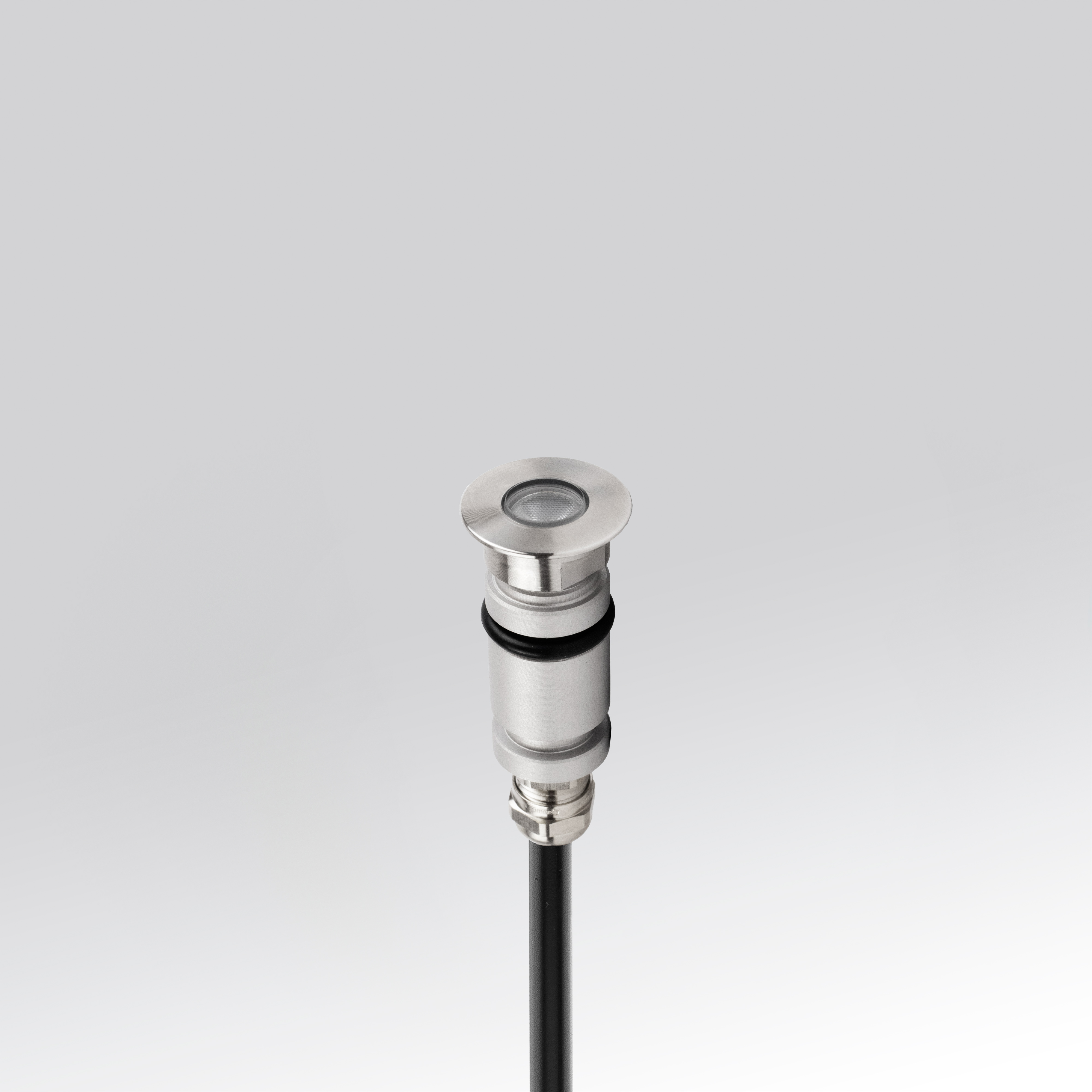

ALTEA MINI

Recessed

ALTEA MINI

1W (350mA) - 1,6W (500mA) // 2,2W (24Vdc)
IP67IK07
21 mm drive

Compose the code
Supply Led Color Optics Cable Finishing Cri
C.C.
24Vdc
 2200 K2700 K3000 K4000 KRedGreenBlu 18° 35° 57° WP 50cmWP 5mWP 10mWP 15m Anodized aluminiumSteelBrushed steel >80
Finishing.01 - Kg 0,05 / Finishing.06.10 – Kg 0,06
Material:

Anticorodal aluminium body
Aluminium or AISI 316L stainless steel trim
Transparent tempered glass (or sandblasted when diffused) and PMMA lens

Connection:

C.C. - Series
24Vdc – Parallel

Installation:

Recessed on ground with housing box (not included)
Recessed on plasterboard or wood with spring (not included)
Recessed on brickwork with housing box (not included)

Controller

CENTRALINE

Phase cut dimmer

VARIALUCE

NOTE: For power supply options, please visit the Power Supplies section of this site.

Accessories needed for installation:
ML021 - Torsion spring
CAS20 - Housing box

NOTE:
